FLASHING & CLOSURES

Permanent formwork

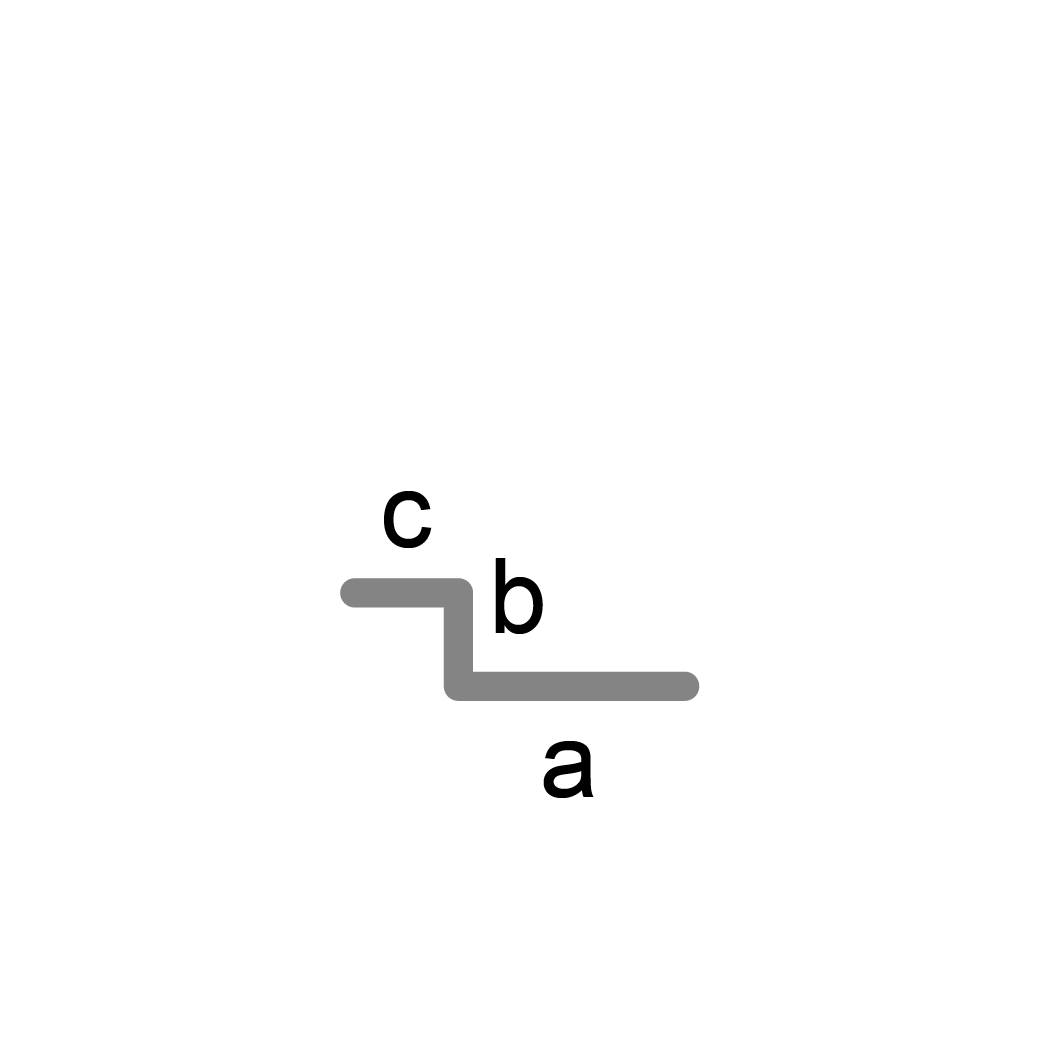

FC02

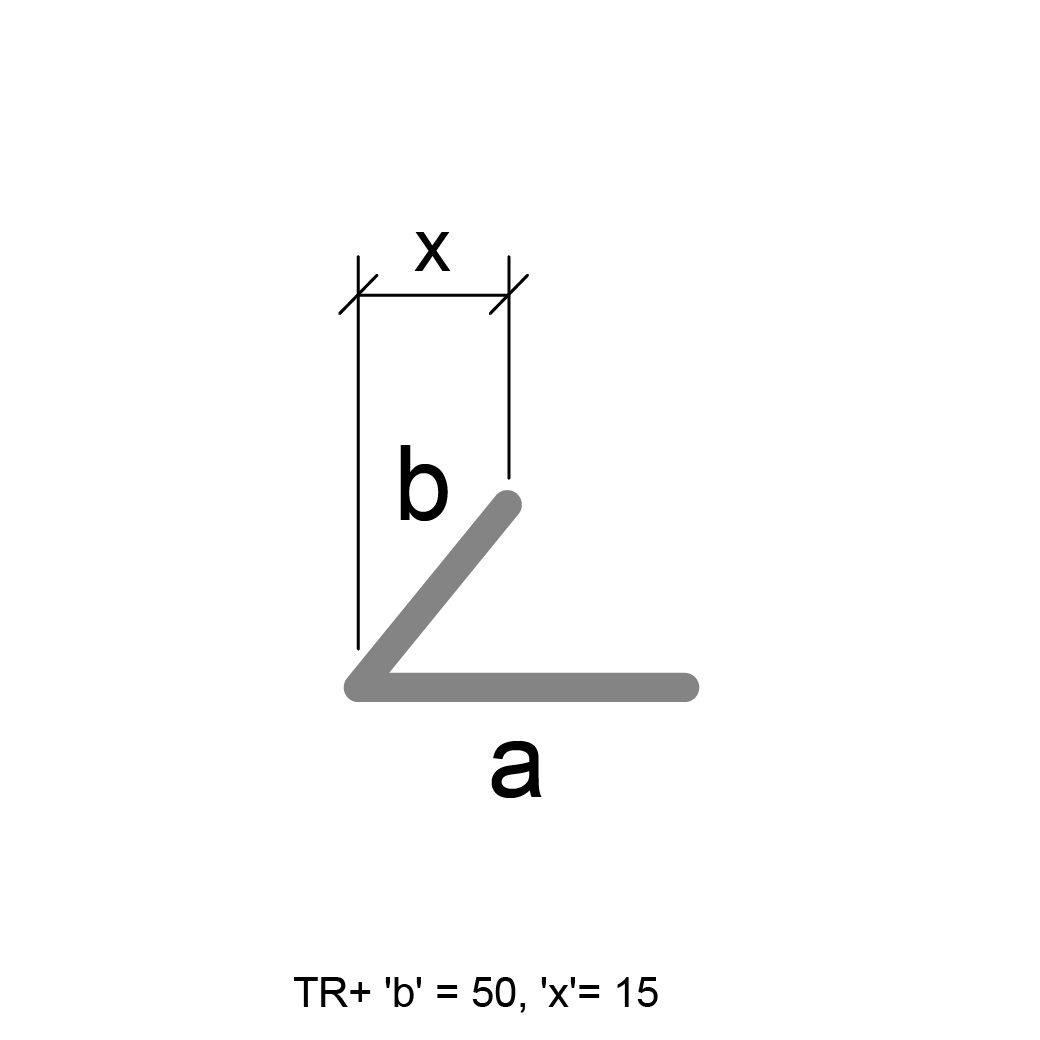

FC03

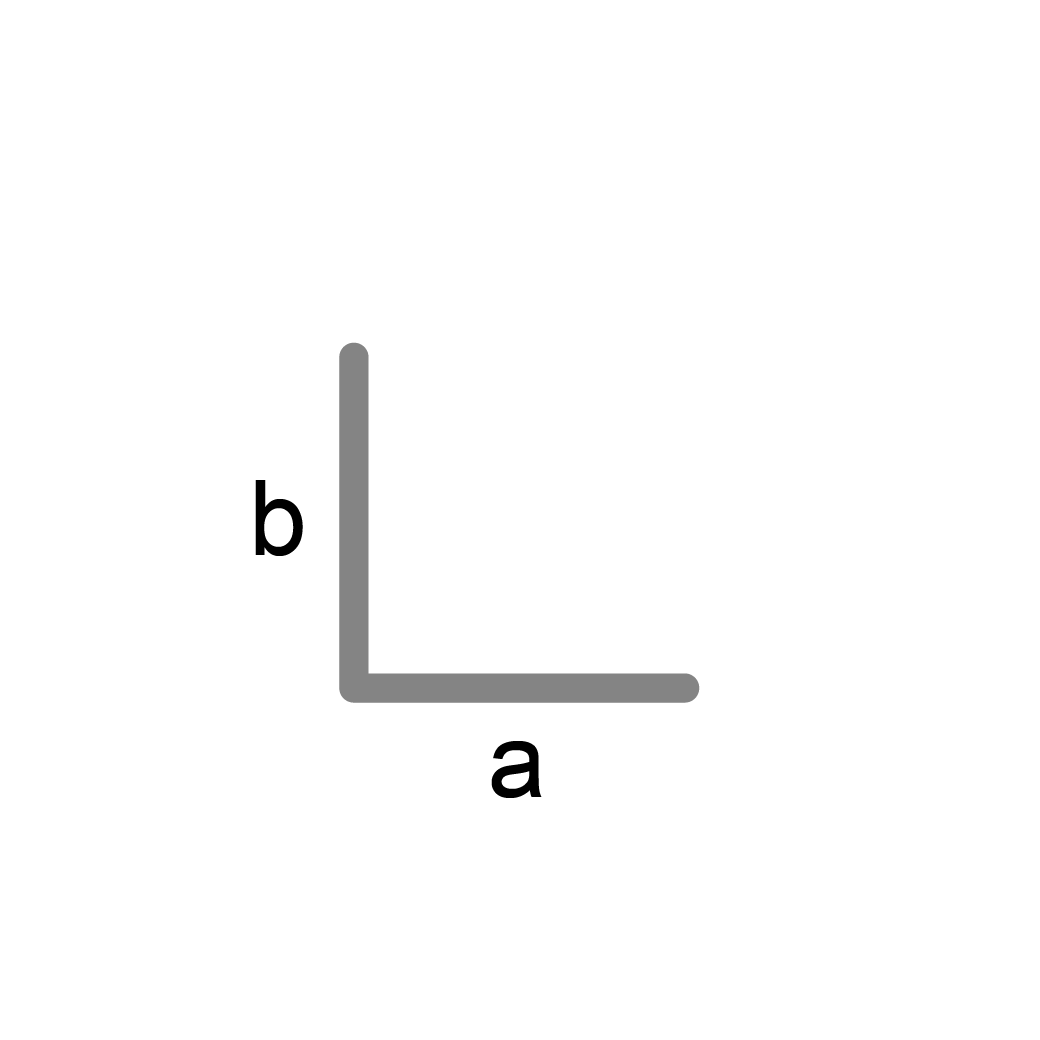

FC04

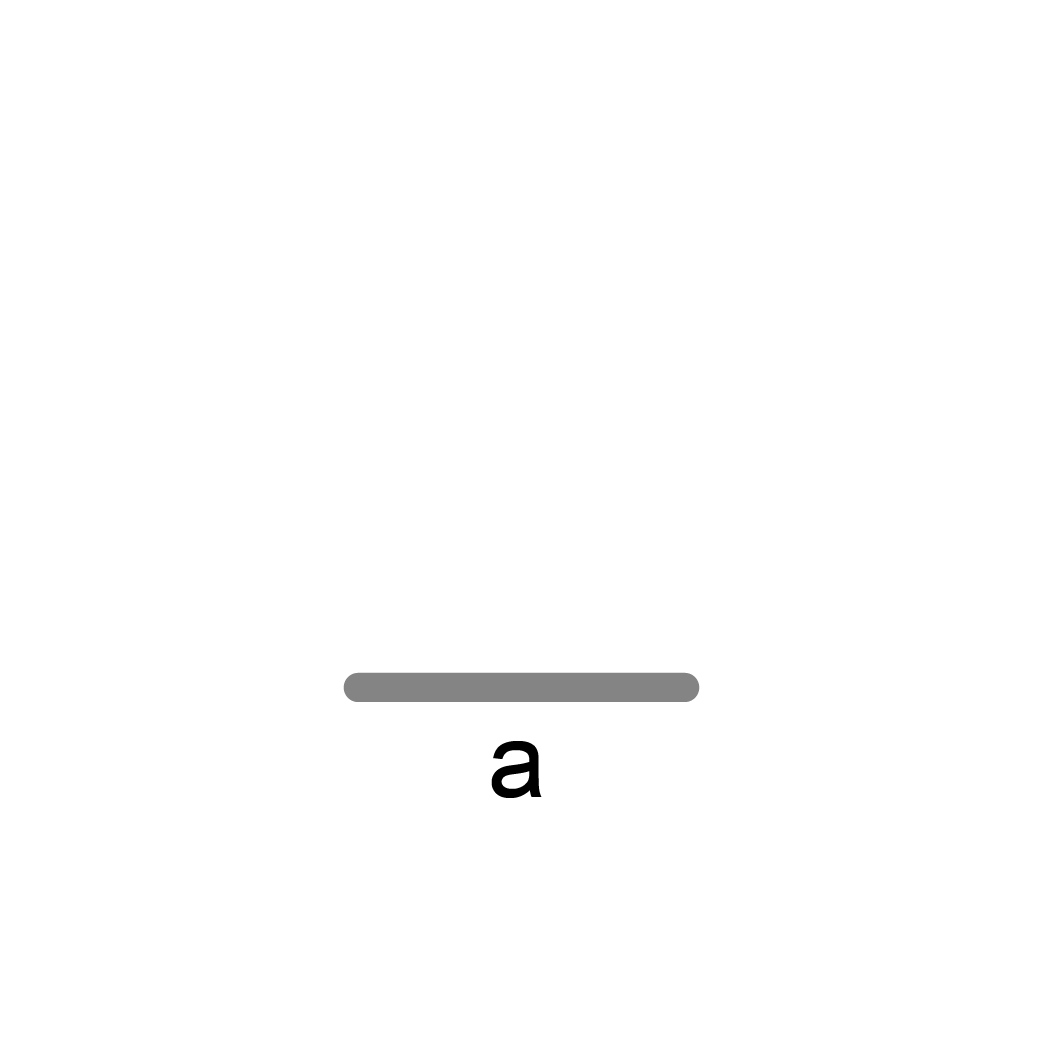

FC05

SPECIFICATION DETAILS

DESCRIPTION

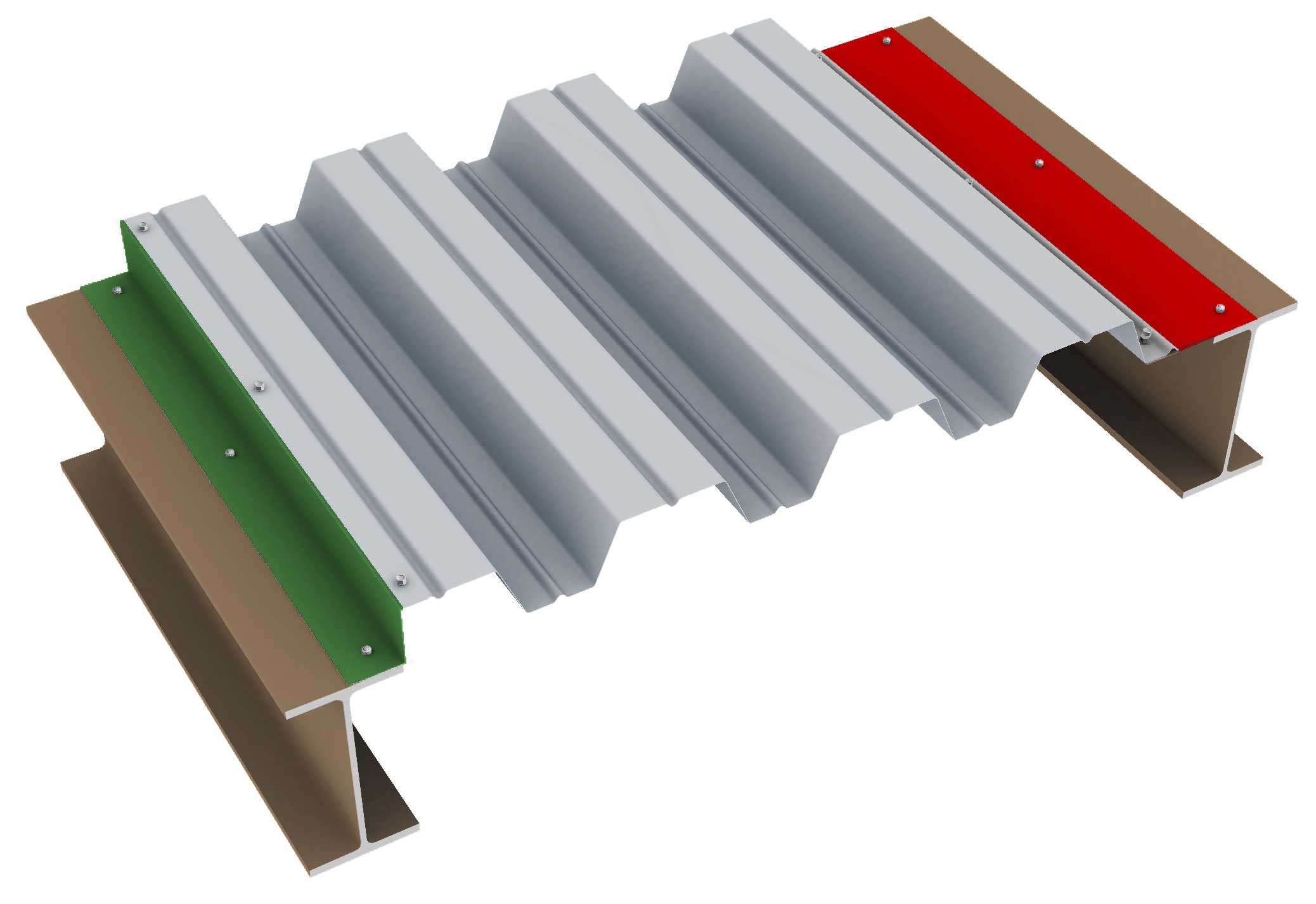

Where perimeter or intermediate beams are to receive shear studs and run parallel to the deck span, there may be a need for galvanised mild steel flashing closures to be provided to form a flashing/closure (FC) to the profile.

BENEFITS

• Allows shear studs to be installed to the top of beam flanges without any obstruction from deck

• Reduces waste when utilising flashings in place of cut deck sheets

• Closes gaps in situations where deck cannot be utilised

GAUGE

• 1.0mm

• 1.2mm

• 1.6mm

• 2.0mm

MATERIAL

• Steel Grade - DX 51D

SPECIFICATION

• 3000mm lengths

• Available in girth with multiples of 25mm

• End Caps available to suit TR60+ or TR80+ profiles, available pre-cut to suit trough size or 1.5m lengths for raking beam locations

FINISHES

• Galvanised (Z275)

• HD (ZM310)

Properties

Product Code	Use	A (mm)	B (mm)	C (mm)	X (mm)	Stainless Steel
02**	R51+/TR60+/TR80+	Min. 50	R51+ = 53 TR+ = 16	R51+ = 37 TR+ = 42	-	N/A
03	TR60+/TR80+	Min. 50	50	-	15	N/A
04	Closure / Patching	Min. 50	Min. 25	Min. 50	-	N/A
04	End Caps	75	95	-	-	N/A
05	Closure / Patching	Min. 75	-	-	-	N/A

** Similar flashing can be used for TR220 where sheets are ripped to suit the beam layout.
