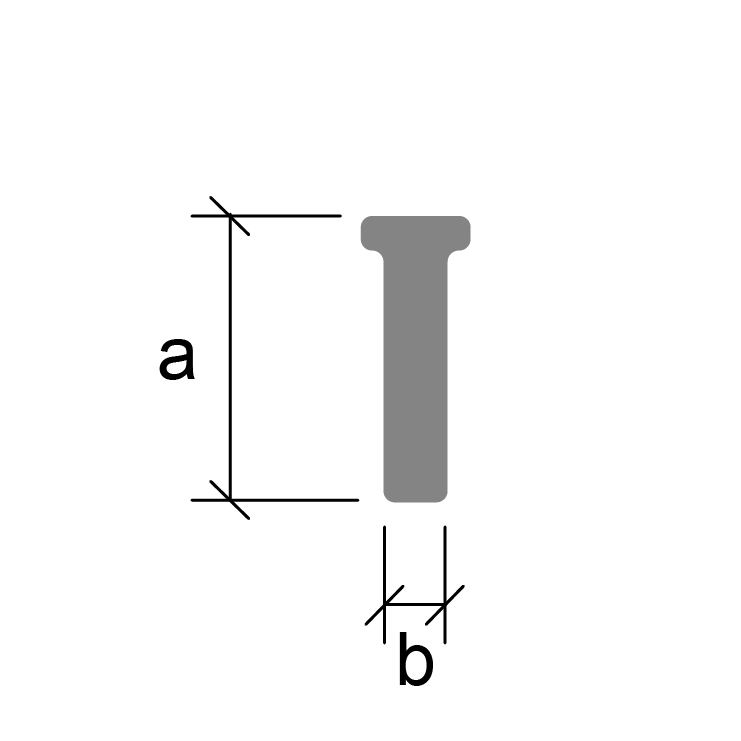

![[object Object] - studs_95](/assets/images/product-pages/Shear-Studs/Shear-Connectors-Shear-Studs/Shear-Connectors-Shear-Studs-1.png)

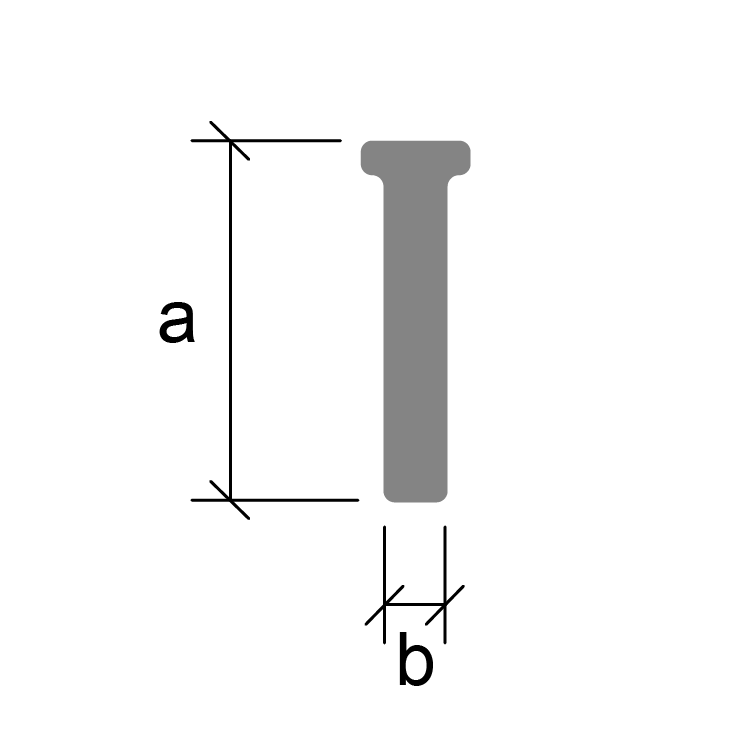

STUDS95![[object Object] - studs_120](/assets/images/product-pages/Shear-Studs/Shear-Connectors-Shear-Studs/Shear-Connectors-Shear-Studs-2.png)
STUDS120Through-Deck Welded Shear Connectors
Through-Deck Welded Shear Connectors

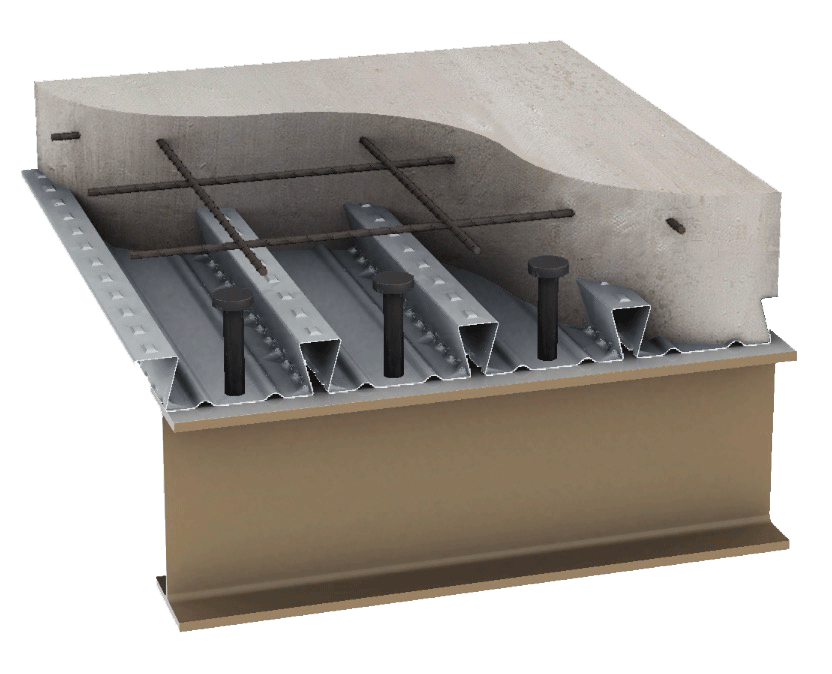

Headed shear studs can be directly welded, or through-deck welded, to the steel beam flange after the decking has been installed. Transmit the horizontal shear force between the concrete and beam connection and are commonly used in the design and construction of composite beams.
~95/100mm and ~120/125mm are the most typical options for use with SMD products. Other sizes are available.
• Shear studs manufactured in accordance with BS EN ISO 13918:2008
• Yield Strength – 350N/mm2 (minimum)
• Tensile Strength – 450N/mm2 (minimum)
• Elongation – 15% (minimum)
| Product Type | Product Application | Dimension a | Dimension b | Fixing Of Product |
|---|---|---|---|---|
| Welded Shear Stud | Through-deck Welded | 95mm (LAW) | 19mm | Ferrules Req’d |
| Welded Shear Stud | Through-deck Welded | 120mm (LAW) | 19mm | Ferrules Req’d |
